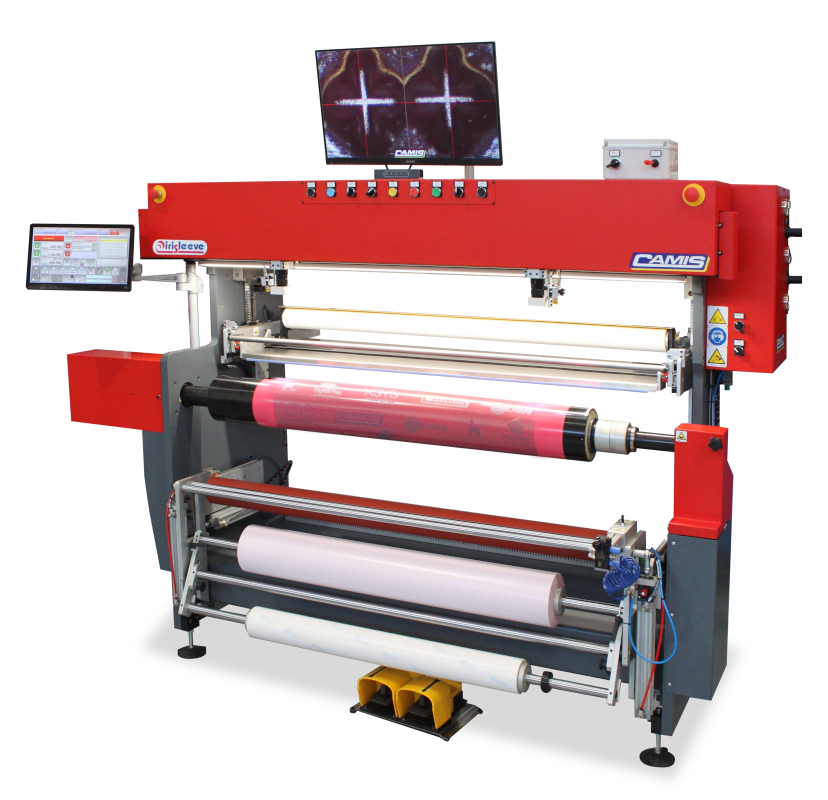

A reliable and highly efficient Flexographic “sleeve dedicated” plate mounting system. Equipped with automatic positioning of cameras and mandrel.
IRISLEEVE HD provides the TOTAL WORK FLOW CONTROL to all operators.

Ask for more informations


  • Extremely easy to use, install, maintain
  • Increases the level of standardization in the plate mounting department, shift after shift, reducing mounting times and risks of press stops due to plate mounting issues
  • Reduced and predictable mounting times for optimal cost control.
  • Simplified setup, the job memory and the automatic positioning of cameras and mandrels ease the execution of recurring and multiple plates jobs
  • Increases operator confidence in all the areas of the plate mounting process, thanks to the machine support in the most sensitive operation

Print width

  • From 900 to 2000
  • Other measures on request

Print development

  • From 300 to 1300
  • Other measures on request

HD cameras

Image Capturing System consisting of two high magnification HD cameras with a high resolution 27” HD monitor. Provides perfect visibility and easy registration of the register marks or micro-dots.

Motorised plate mounting table

Ergonomically efficient and sturdy, the plate mounting table increases productivity whilst reducing the stress for the operators, allowing them to position all plates in register and avoiding contact with the adhesive tape.

Plate application roller

Full width plate application roller ensures an even application pressure; it guarantees a safe bond strength without distortions or air bubbles, for maximum standardization.


The automation system, managed via a touchscreen interface, ensures automatic positioning of cameras and mandrel for maximum accuracy and ease of use in recurring jobs.

Industry 4.0 ready

The machine software is ready to connect with company IT systems and can be integrated into Industry 4.0 platforms.

Taper slide - Tape applicator

Apply the double-sided mounting tape quickly and without wastes, air bubbles or stretching, preventing the formation of creases that can lead to image distortions and inconsistent print quality.

Plate cutting knife

A handy adjustable knife allows you to cut the edges of the mounted plate, to obtain perfect joints

Mmrm video package

An extended digital graphics package helps to manage the most complex mounting operations, integrates advanced reporting features to support internal quality control audits

Barcode reader

The 1D / 2D code reader allows the operator to interact with the machine faster and more comfortably
